Garden fence, metal railing - Basic 2 - galvanised

Metal garden fence, fence, railing, Model Basic 2, made to measure, directly from the manufacturer, in galvanised design

Our Basic 2 model fence is a modern, sturdy welded metal and steel fence that can also be used as a railing for fall protection.
With its hot-dip galvanised surface, it is rust-free and weather-resistant for many years.
The fence is easy to assemble, so anyone with manual skills can install it.
Assembly instructions, advice and service come directly from the manufacturer Kirchberger Metall.
A fence Made in Germany at the best price-performance ratio.
Customised production according to customer requirements and short delivery times round off the offer.

Details:
- All connections fully welded according to DIN 1090
- Material steel 235JR, surface hot-dip galvanised
- Frame made of 40x8 mm flat steel
- Bar infill made of 30 x 6mm flat steel
- Angle bent 40 x 6mm
- Slotted holes in the mounting bracket can compensate for +/-10mm post spacing.
- Incl. screws, nuts and washers for fastening to the M8 stainless steel bracket.
- Incl. self-tapping screws for fastening the brackets to the steel posts
or alternatively concrete screws for fastening to existing stone posts.

Use as a fence or railing?
- as a fence: panel length up to max. 2500 mm possible, height up to 1500 mm
- as a railing: panel length up to max. 1500 mm, height up to 1100 mm (withstands 1kN/m rail load)

Selection of length and height:
Please enter the fence panel length and fence panel height in the selection field above

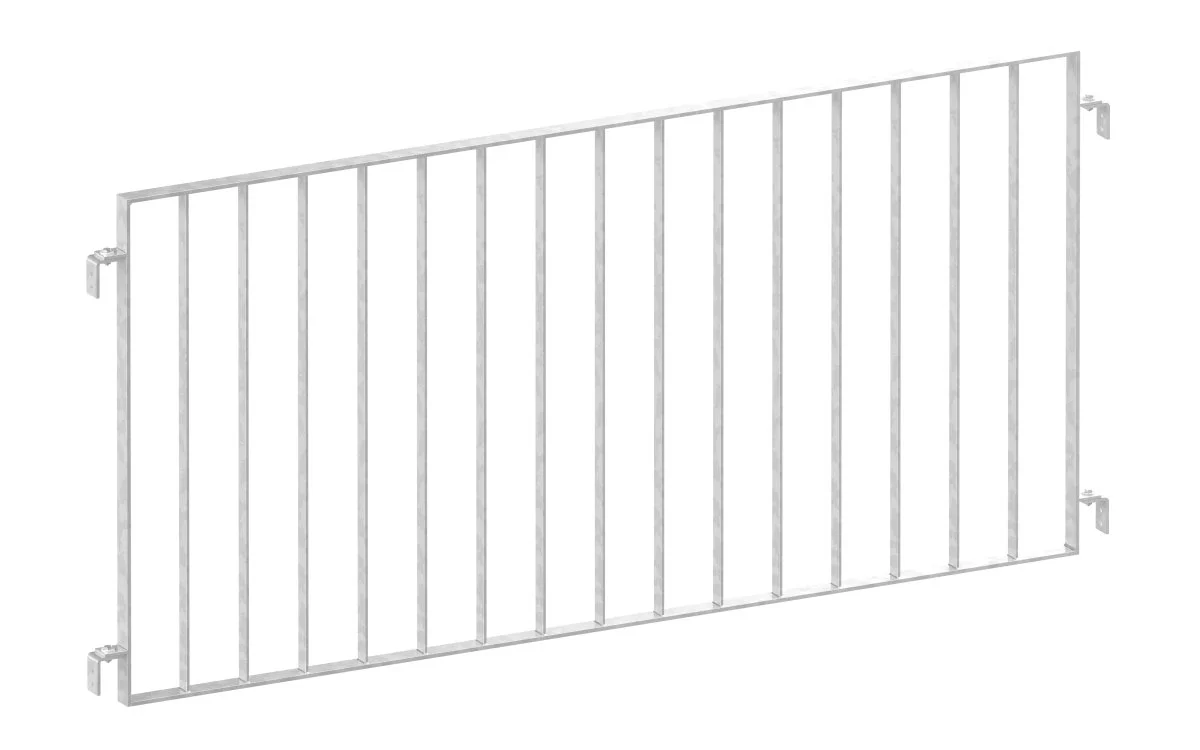

Specify the fence panel length incl. bracket and angle in mm! (see illustration)

Scope of delivery:
- Fence elements in the selected length, height and quantity
- 4x mounting brackets for connection to fence post or wall, stone pillar
- 8x self-tapping screws for fastening to the steel post or concrete screws for existing stone posts

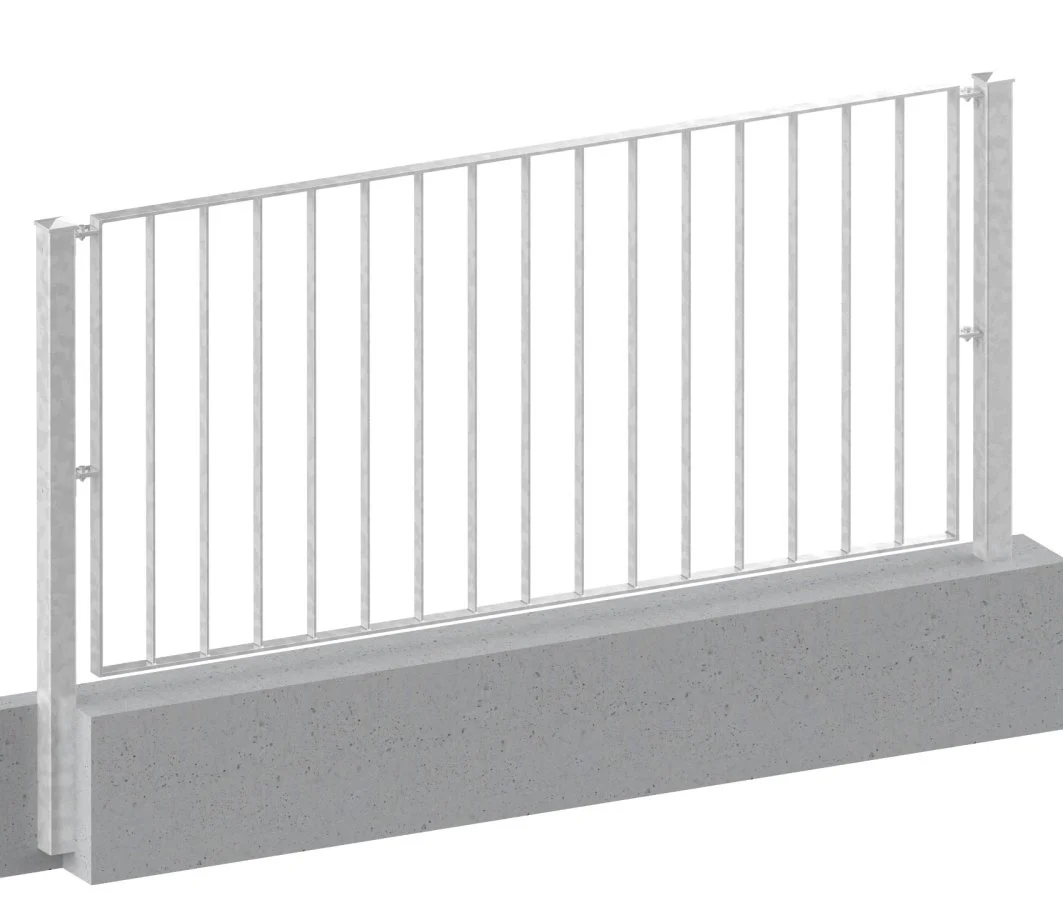

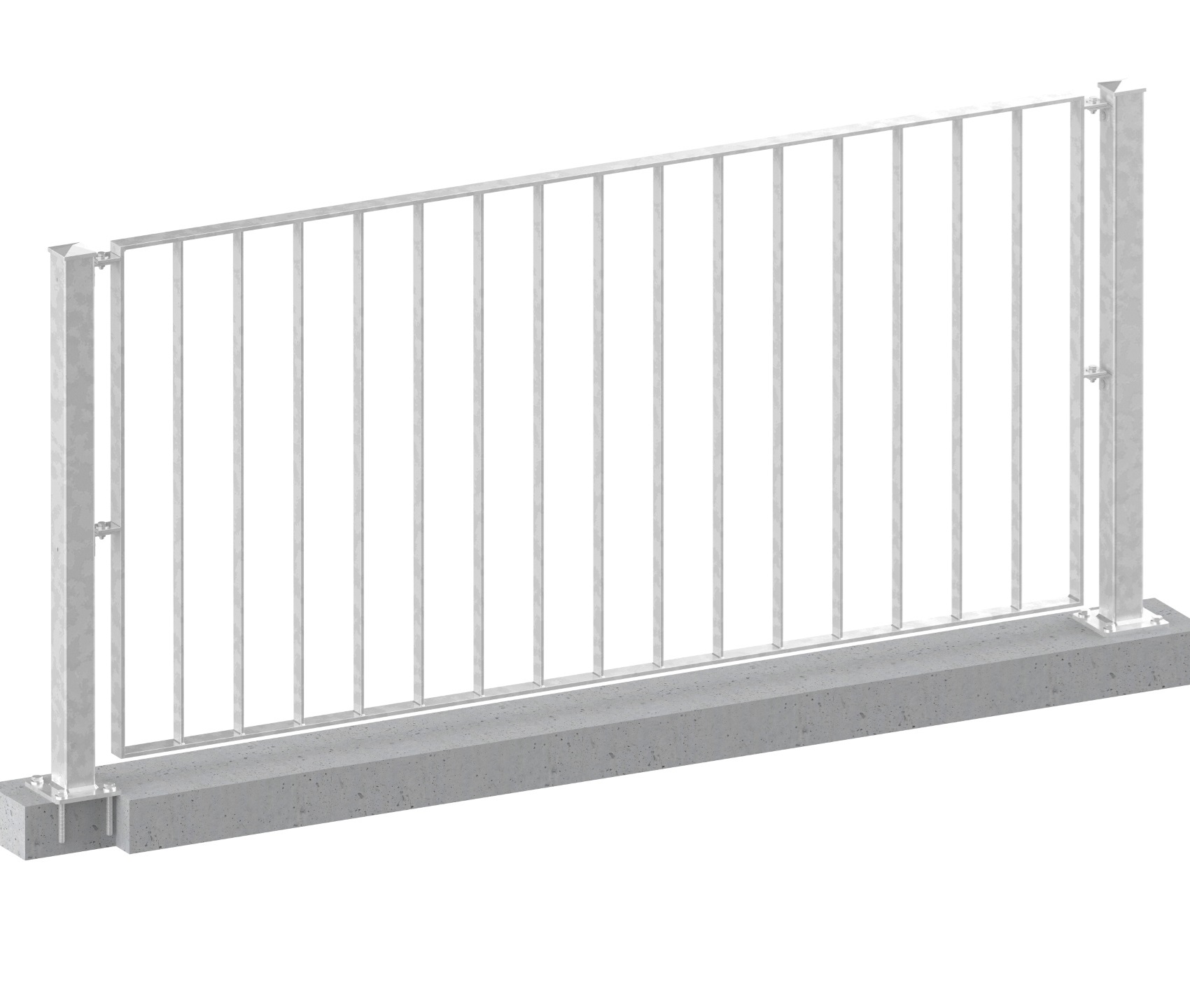

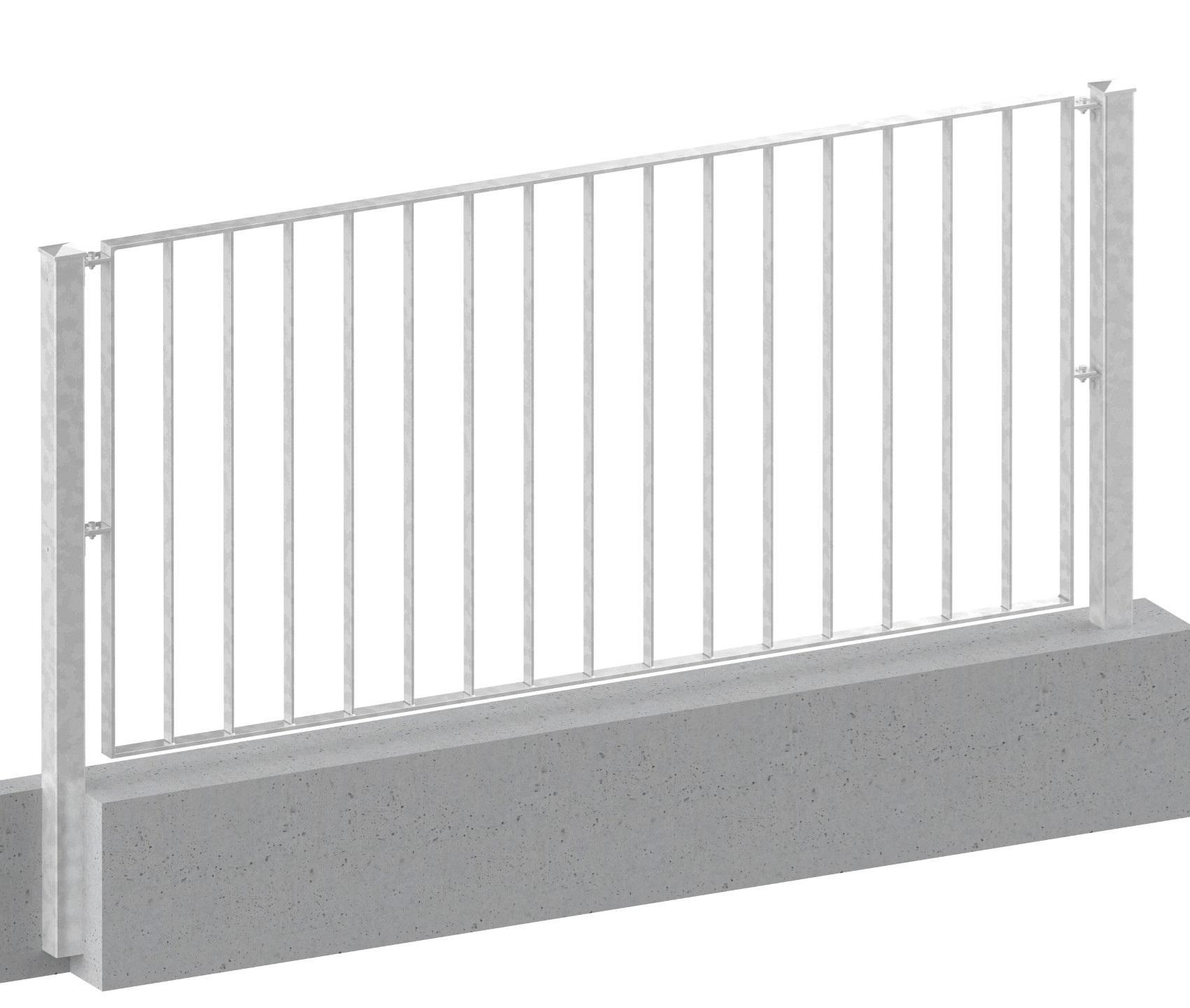

Selection and number of posts:
The matching posts for the fence element can be found here. (please click)


Additional information:
Walls or certain fall heights often have to be taken into account when fencing.
A simple picket fence no longer provides sufficient stability and is not permitted!

The regulations for railings and fall protection vary slightly from state to state, so please inform yourself in advance.
We have summarised the essential general regulations here:

• Railings may only be manufactured in companies that are certified according to the European standard DIN EIN 1090.
• From a fall height of 100cm (Bavaria 50cm), a guardrail of at least 90cm height is required.
• From a fall height of 12m, a guardrail of at least 110cm height is required.
• All railing openings must not be more than 12cm, therefore bar spacing max. 12cm
• Holm loads of 0.5 kN/m without significant public traffic, (private area), 1.0 kN/m with significant public traffic, (public area)
