Double wire fence 6/8/6 with posts, model MILO, galvanized and coated RAL 7016

Fence package - Double wire fence 6/8/6 with posts model MILO, galvanized and powder-coated in anthracite RAL 7016

The MILO fence set consists of double wire mesh panels including matching posts and is offered in various heights up to a length of 30 m.

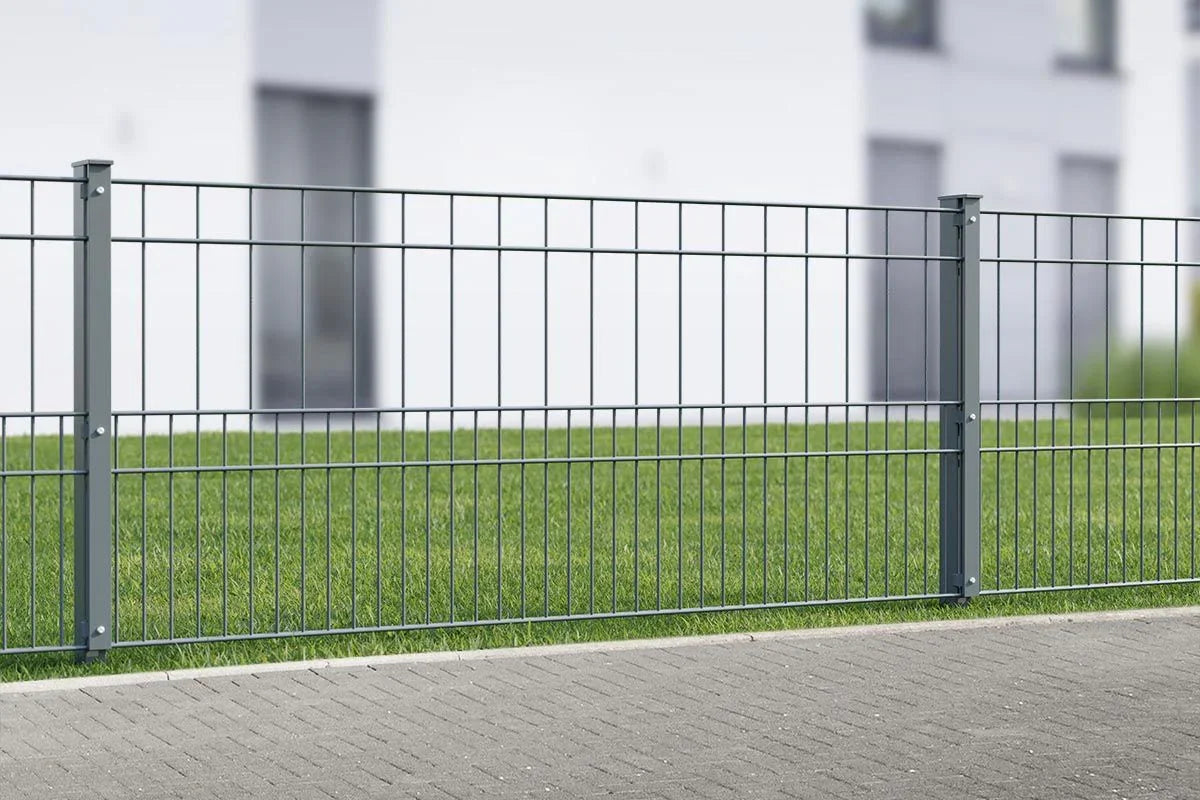

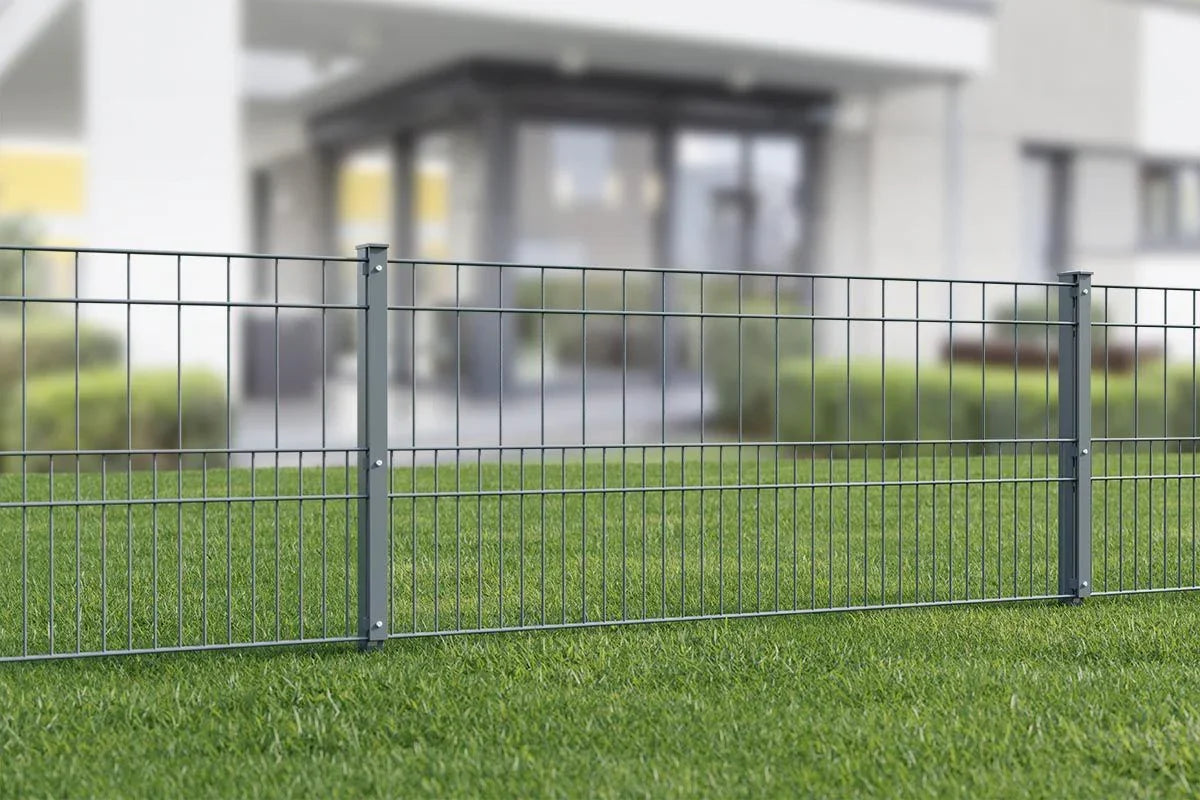

The exclusive design of the MILO double-wire fence stands out. Visually, it clearly distinguishes itself from comparable products due to its varying mesh sizes.

This double-wire fence is available in a galvanized and powder-coated finish (RAL 7016). Special RAL colors are also available upon request. Custom-sized panels without overhang, in any height, can be manufactured upon request.
Under normal weather conditions, the protective zinc layer lasts up to 30 years. The additional plastic coating in RAL colors extends this protection for many more years.

Details:

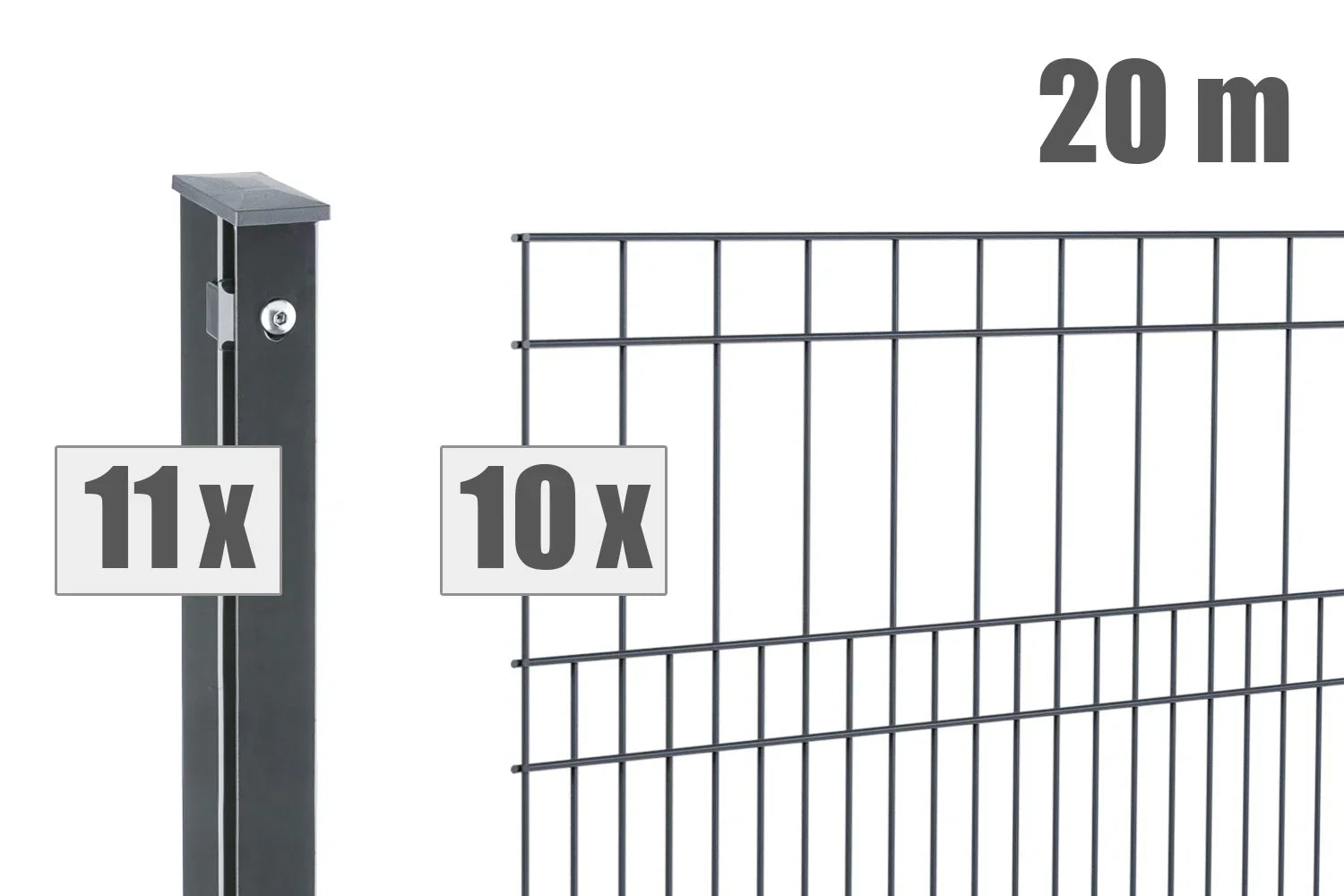

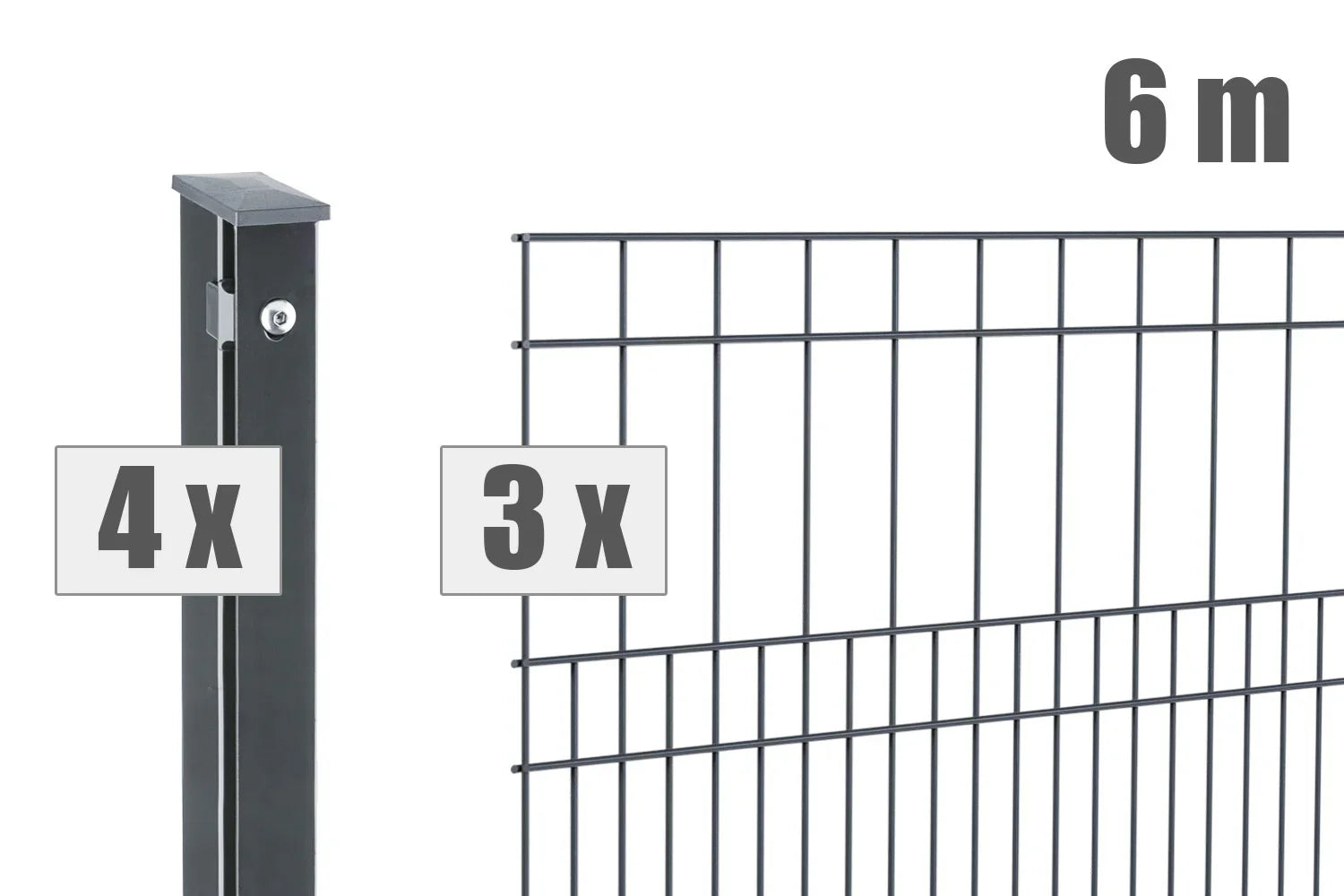

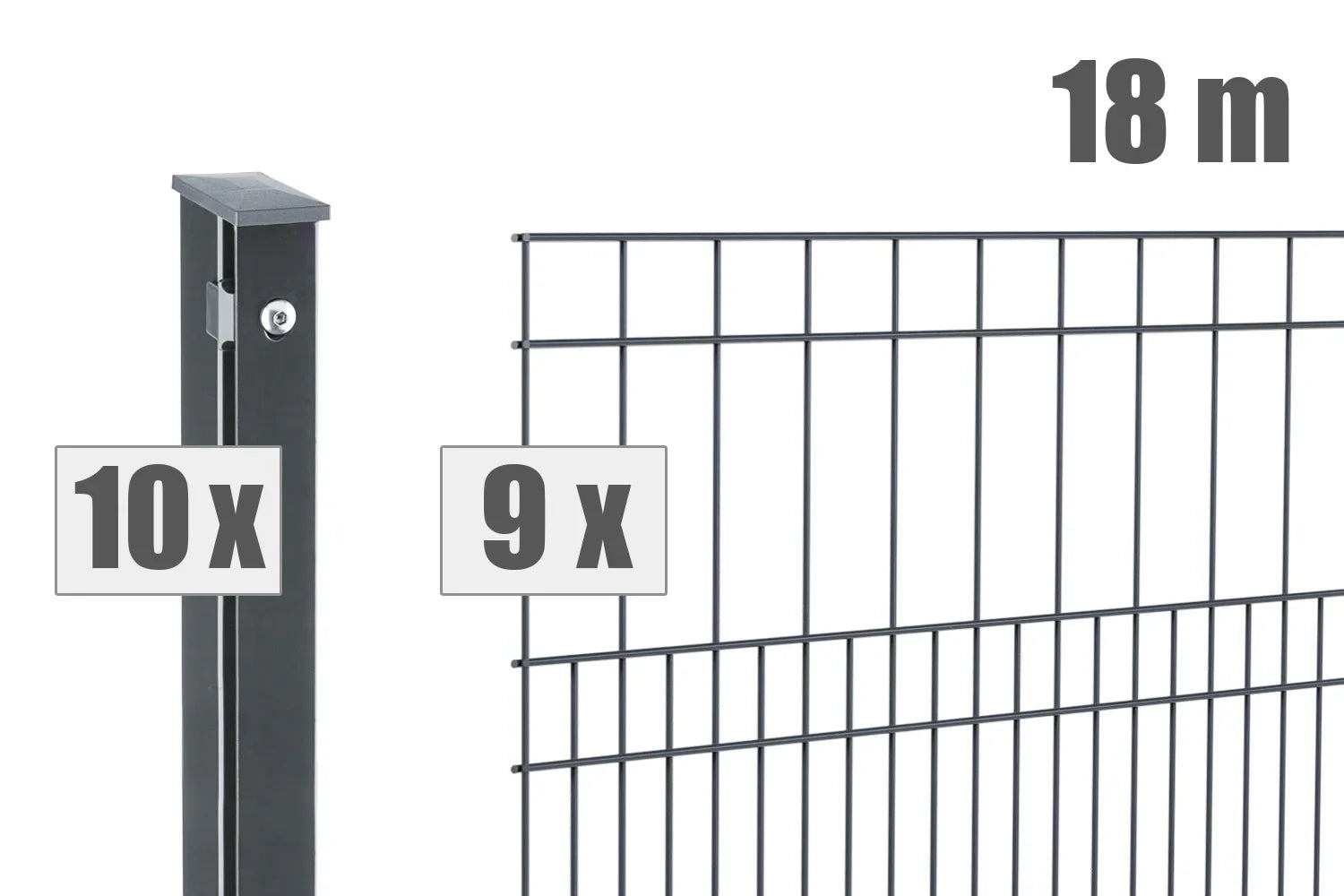

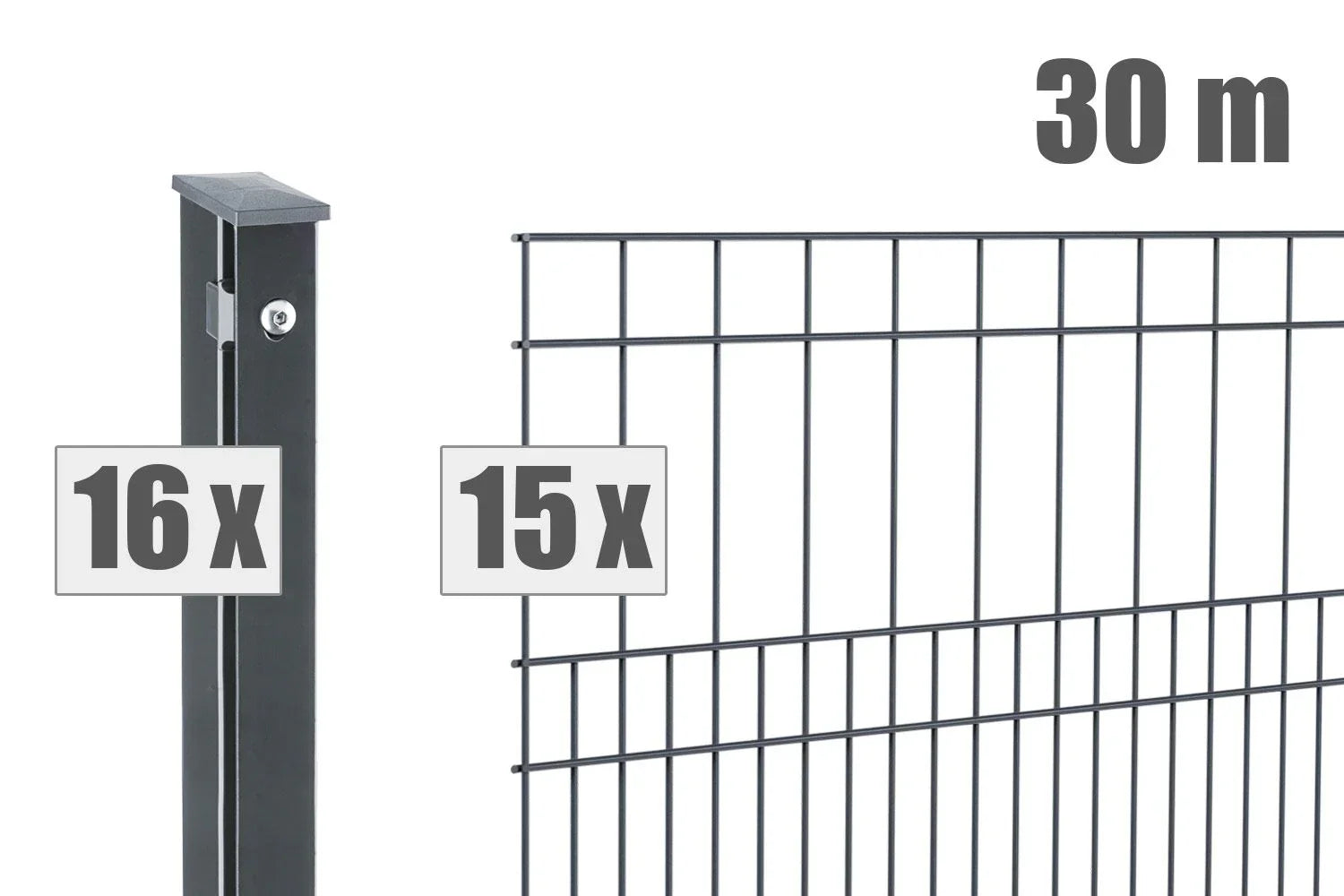

• Lengths from 2m to 30m
• Fence package including the appropriate number of posts TYPE VAP

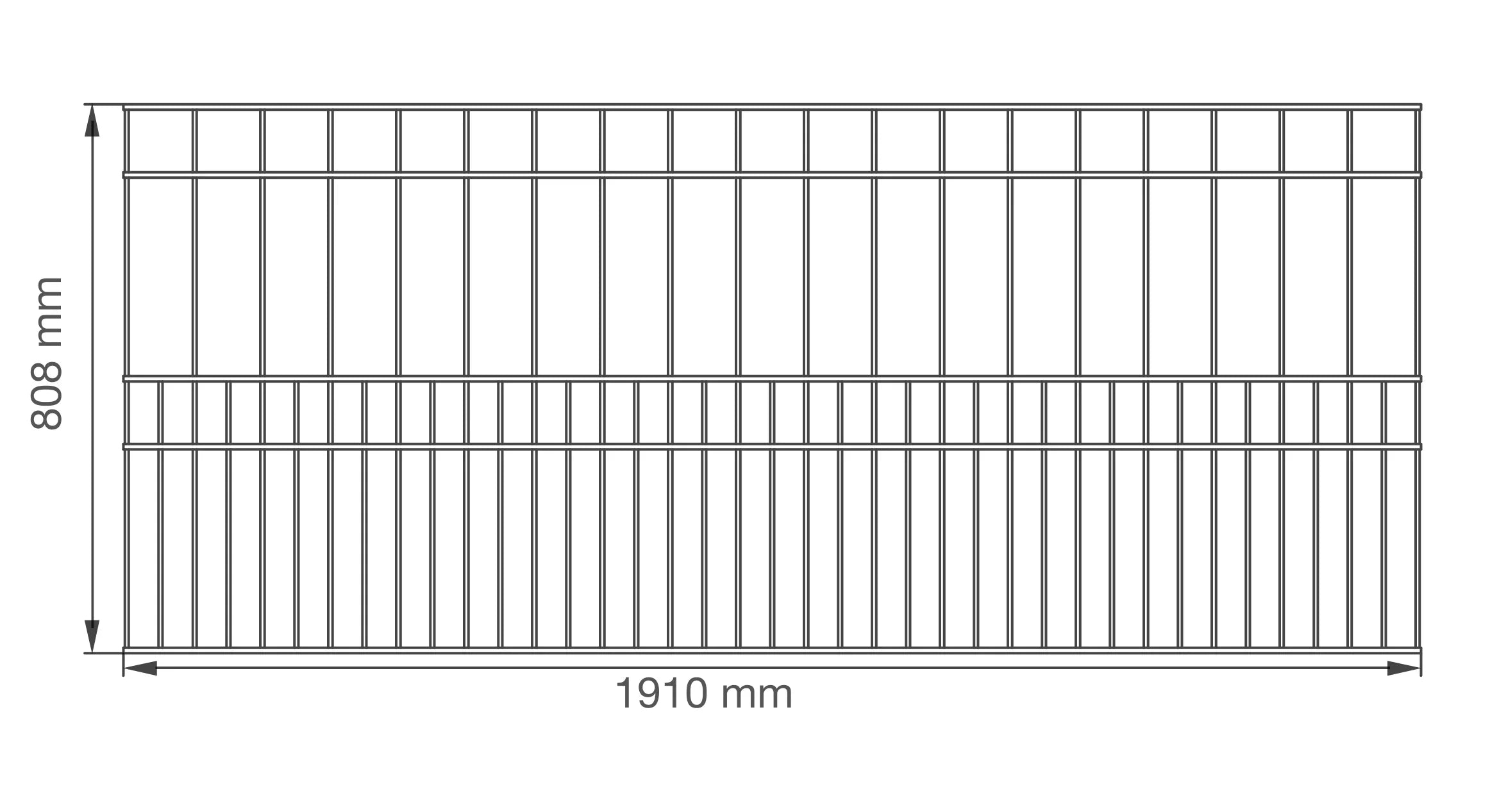

• Height: 808 mm, 1008
• Grid length: 1910 mm

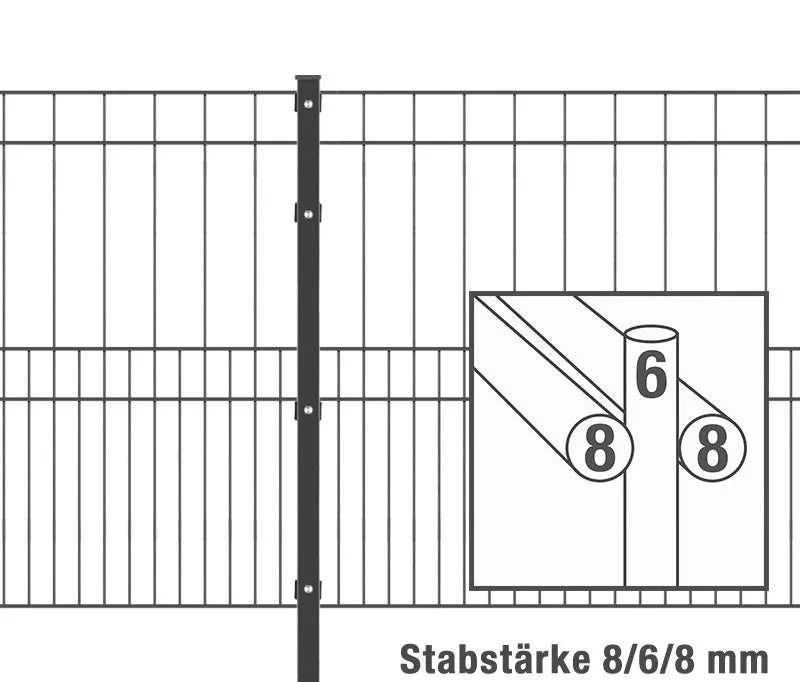

• Wire thickness: 8/6/8 mm
• without spikes/overhang

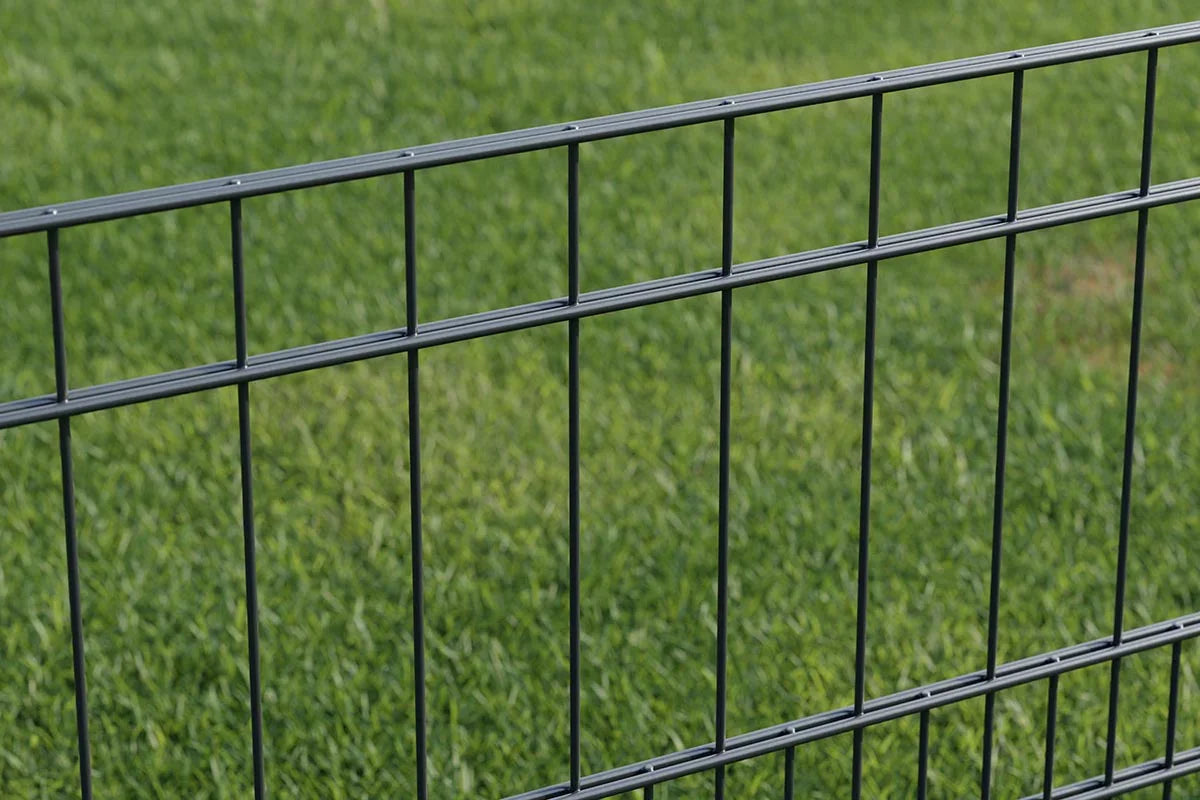

• The mesh size is 50/100 x 100-400 mm
• Surface: hot-dip galvanized and additionally high-quality powder-coated in RAL 7016 anthracite grey.

Delivery includes matching posts TYPE VAP:
Includes mounting hardware (profile cover strip, stainless steel screws and plastic cap)
Post profile: 60 x 40 mm
Post length:
1300 mm with a fence height of 808 mm,
1500 mm with a fence height of 1008 mm
Post color: as selected, same color as fence panel
Ground anchoring: for embedding in concrete

Precise length calculation and post spacing:

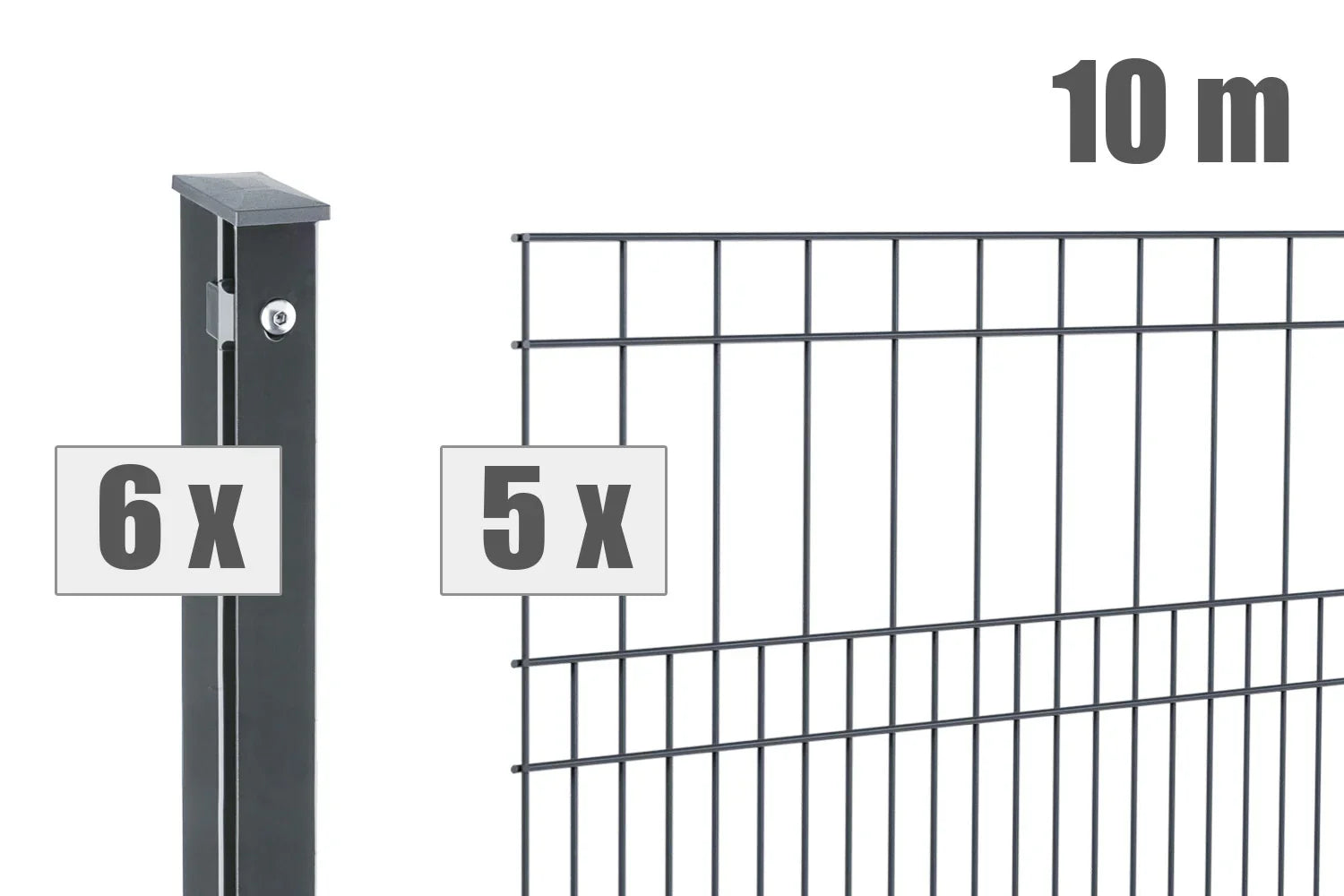

Axial post spacing: 1 fence panel = 1920mm -> 5 fence panels = 9600mm
Light post spacing: 1 fence panel = 1880mm


Secure packaging and fast delivery:
Delivery by freight carrier, securely strapped to a disposable pallet.
Unpacking by the customer; no on-site assembly required.

Price includes shipping and delivery to the curb!

Questions and answers:

Can I cut or shorten the fence panels to fit?
Yes, you can cut the welded wire mesh panels to size using an angle grinder. The cut edges should be coated with zinc spray and paint to protect against corrosion.
You can find the appropriate zinc and paint spray in the shop under >> Fasteners and Accessories <<

How can corners be designed?
For corners larger or smaller than 90°, simply install two posts, bend the mesh panel, or attach a U-profile fence connector strip. More information can be found in the >> Assembly Instructions - Fence Package - 2m.pdf << .
For 90° corners, you can use a corner post. Available under >> Fasteners and Accessories <<

Are the posts only available for setting in concrete?
Yes, this standard product range only includes posts for setting in concrete.
However, the posts can also be shortened on the construction site, allowing the base plate adapter to be inserted into the post tube from below and the fence post to be bolted down.
The adapters are offered separately under >> Mounting and Accessories << .

How are the fence elements connected to the gatepost?
Gates are always supplied with two posts. The fence connection can be made using continuous fence angle brackets.
or can be solved using simple fence connection brackets. You can find both under >> Fasteners and Accessories <<

Is there an assembly manual for an inexperienced fence installer?
Yes, the assembly instructions are automatically included with every shipment.
You can also find the assembly instructions here: >> Assembly instructions-fence package-2m.pdf <<
If you have any questions, you can also contact us by phone or email.
