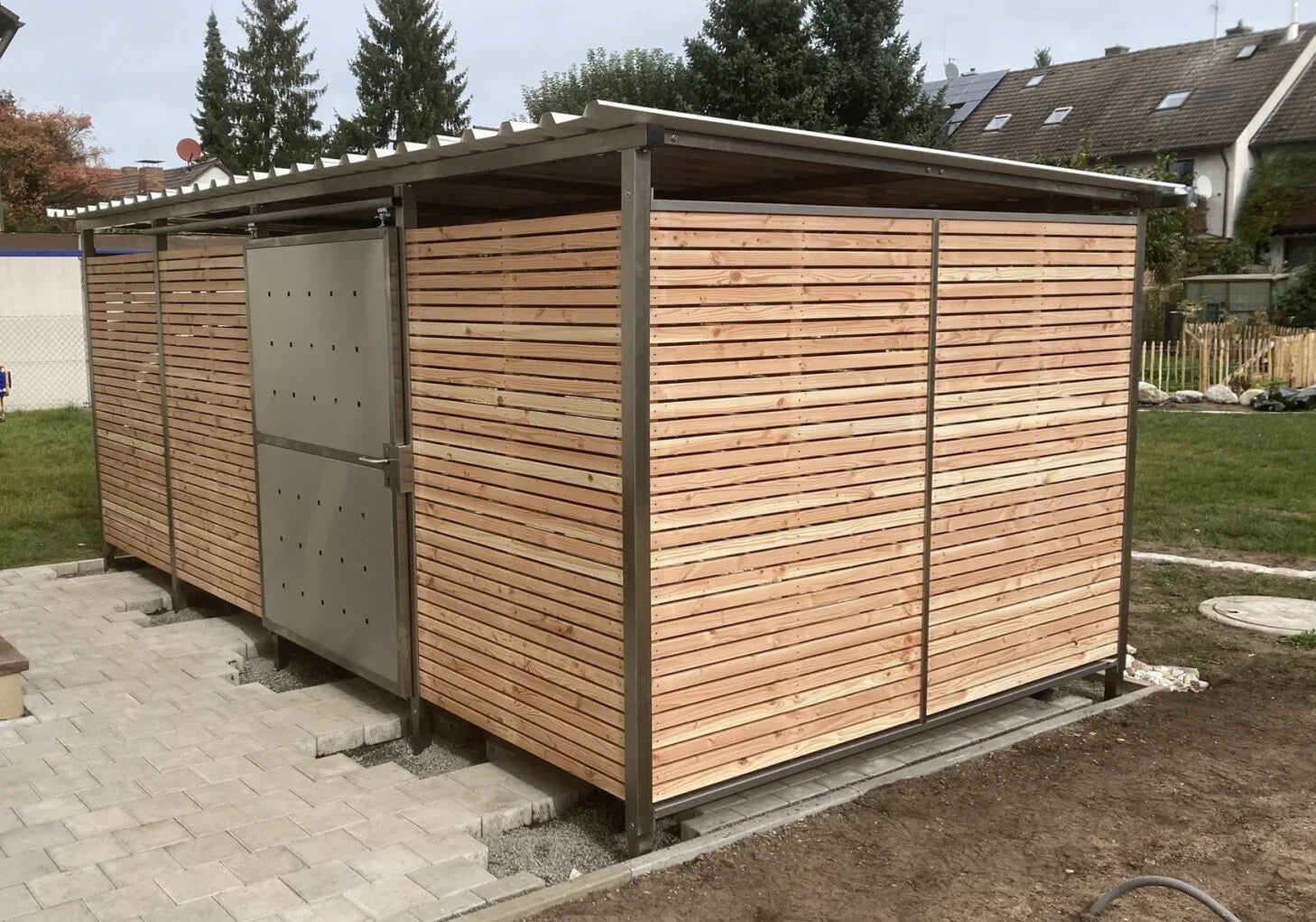

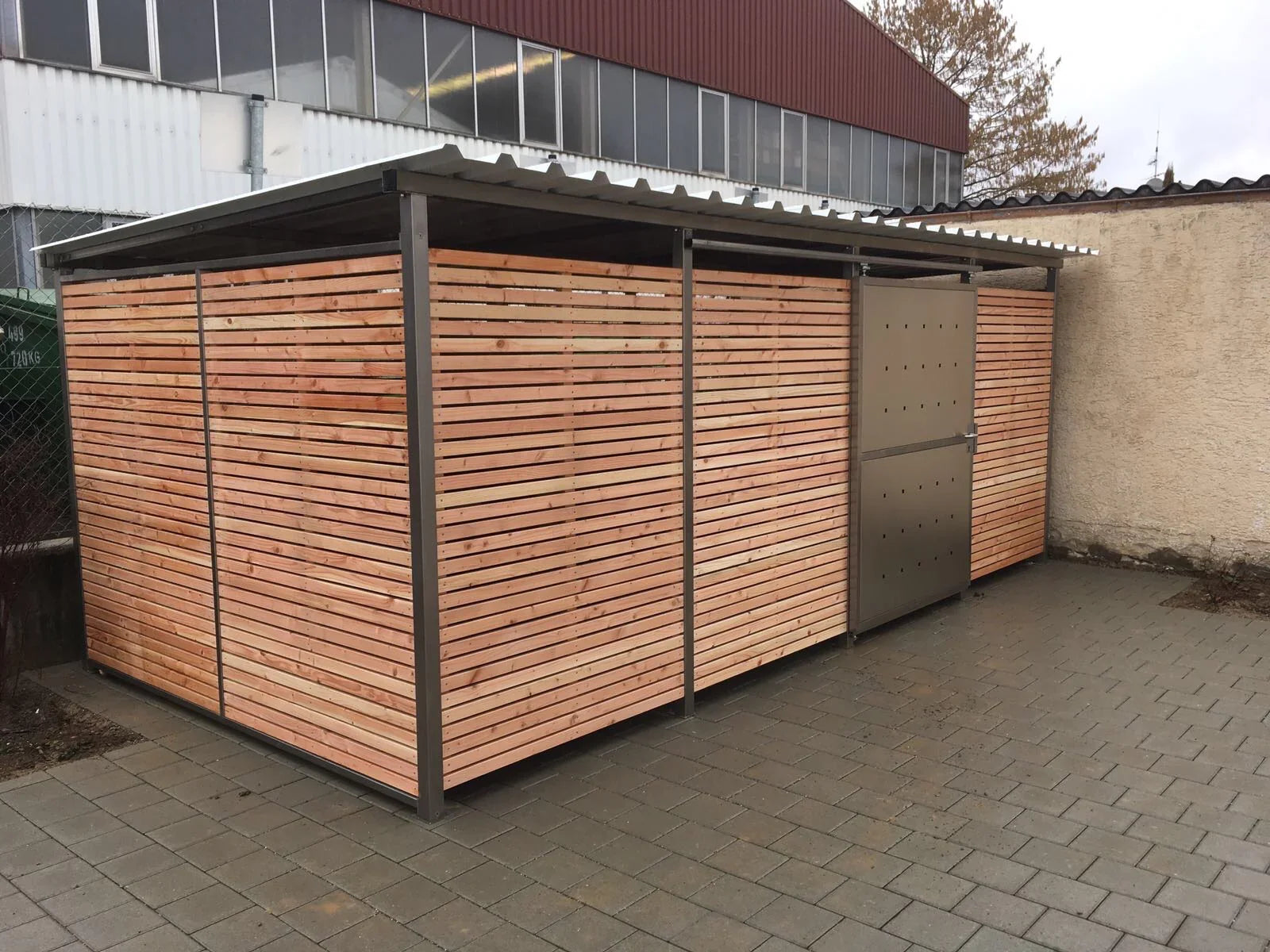

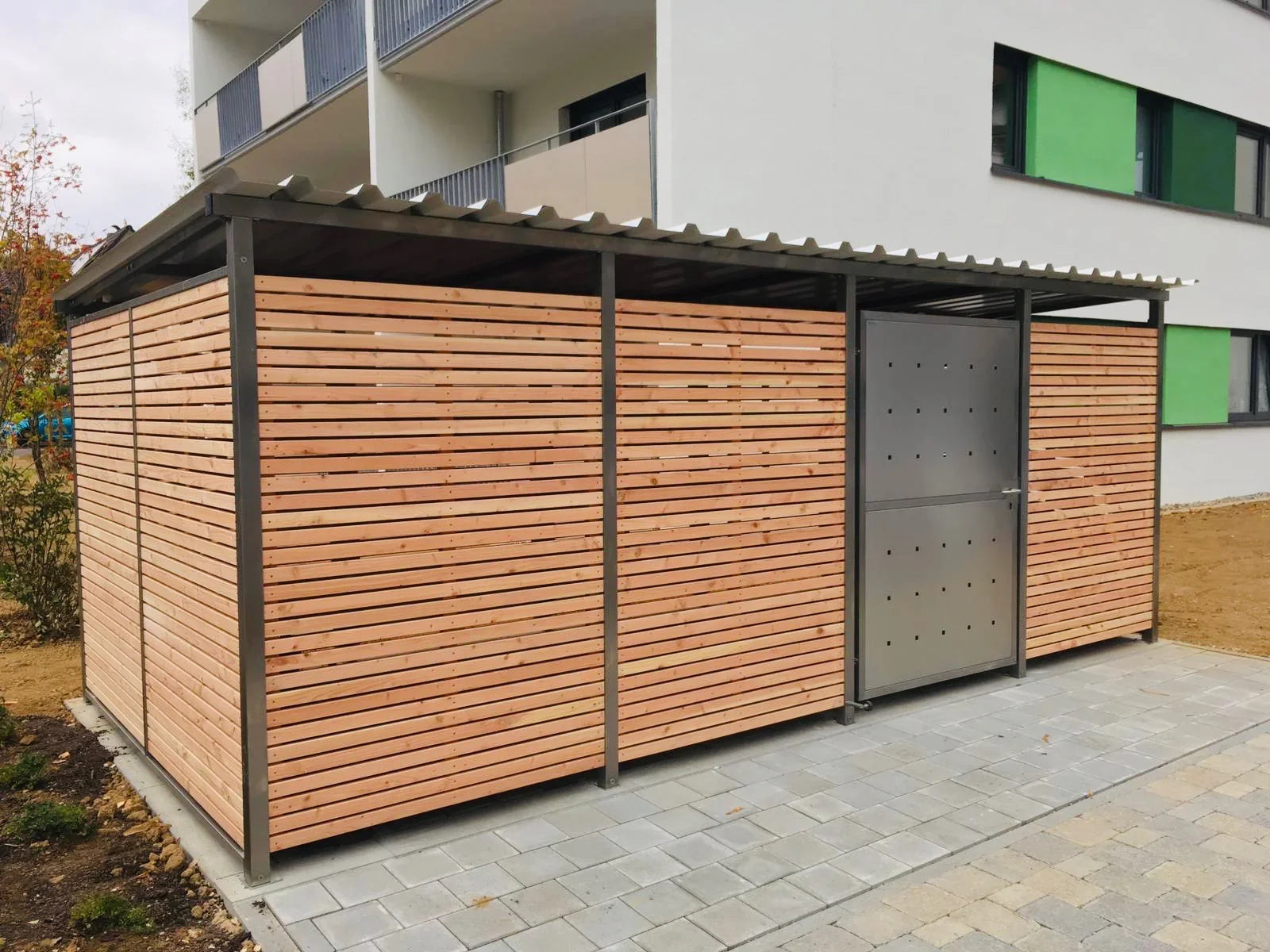

Bicycle garage bin house Waste container roofing Garden shed size 4 made of stainless steel with wooden panelling
- Made in Germany.
- A rust-free stainless steel frame (material V2A, 1.4301) ensures stability.
- Roof consisting of galvanised, powder-coated trapezoidal sheet metal with a max. snow load of up to 140 kg/m².
- High-quality, durable wood panelling in untreated Douglas fir (European larch).
- Sturdy door with stainless steel frame
- Door lock with lever handle set, prepared for the installation of a 25/25 lock cylinder
- Fastening set, screws for anchoring to the ground included in the scope of delivery.

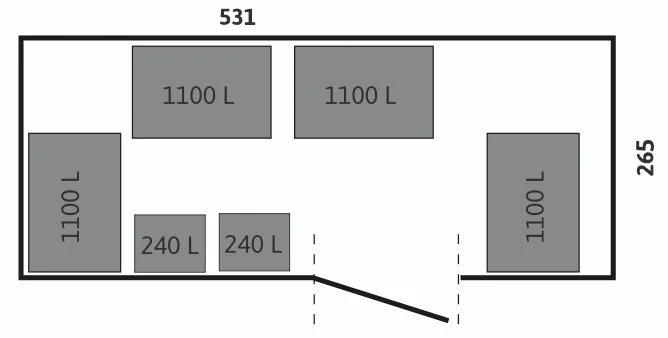

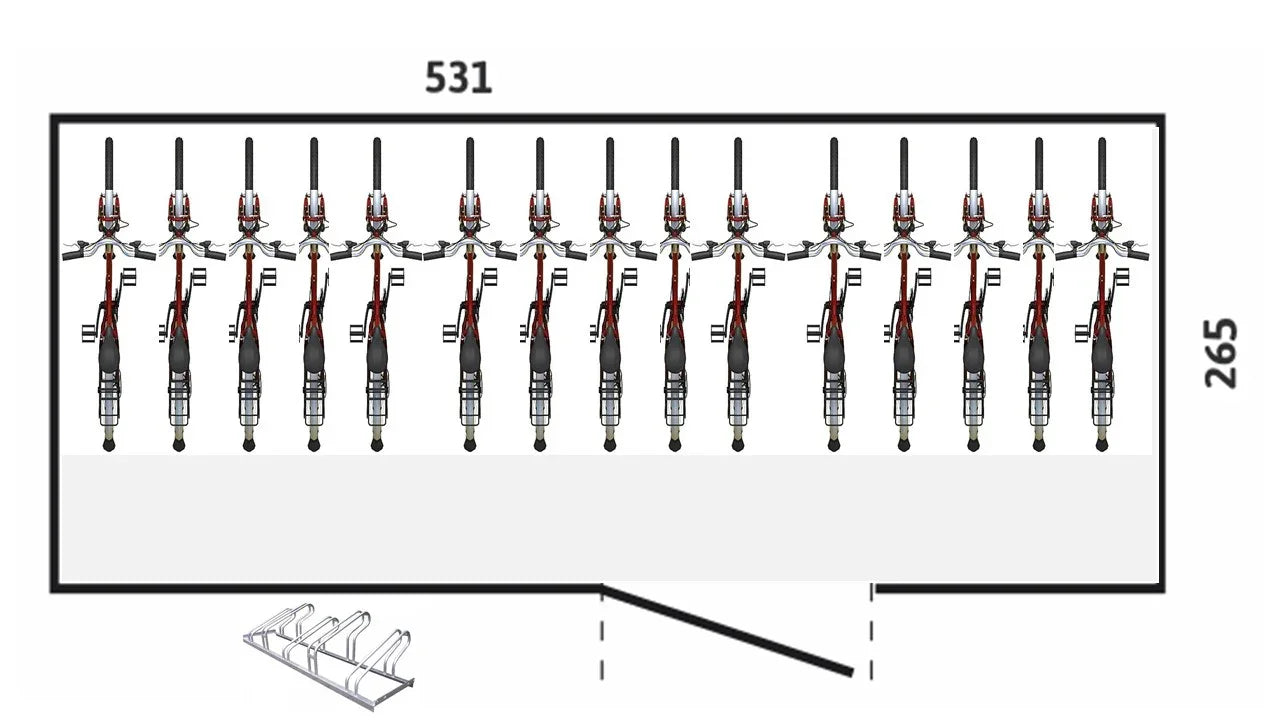

Dimensions:
Width: 531 cm,
Depth: 265 cm,
Height: front 200 cm, rear 190 cm
Door variant:

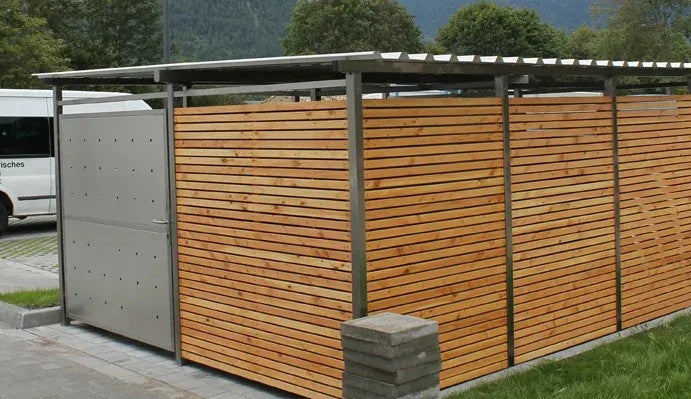

- Swing door with perforated stainless steel panel

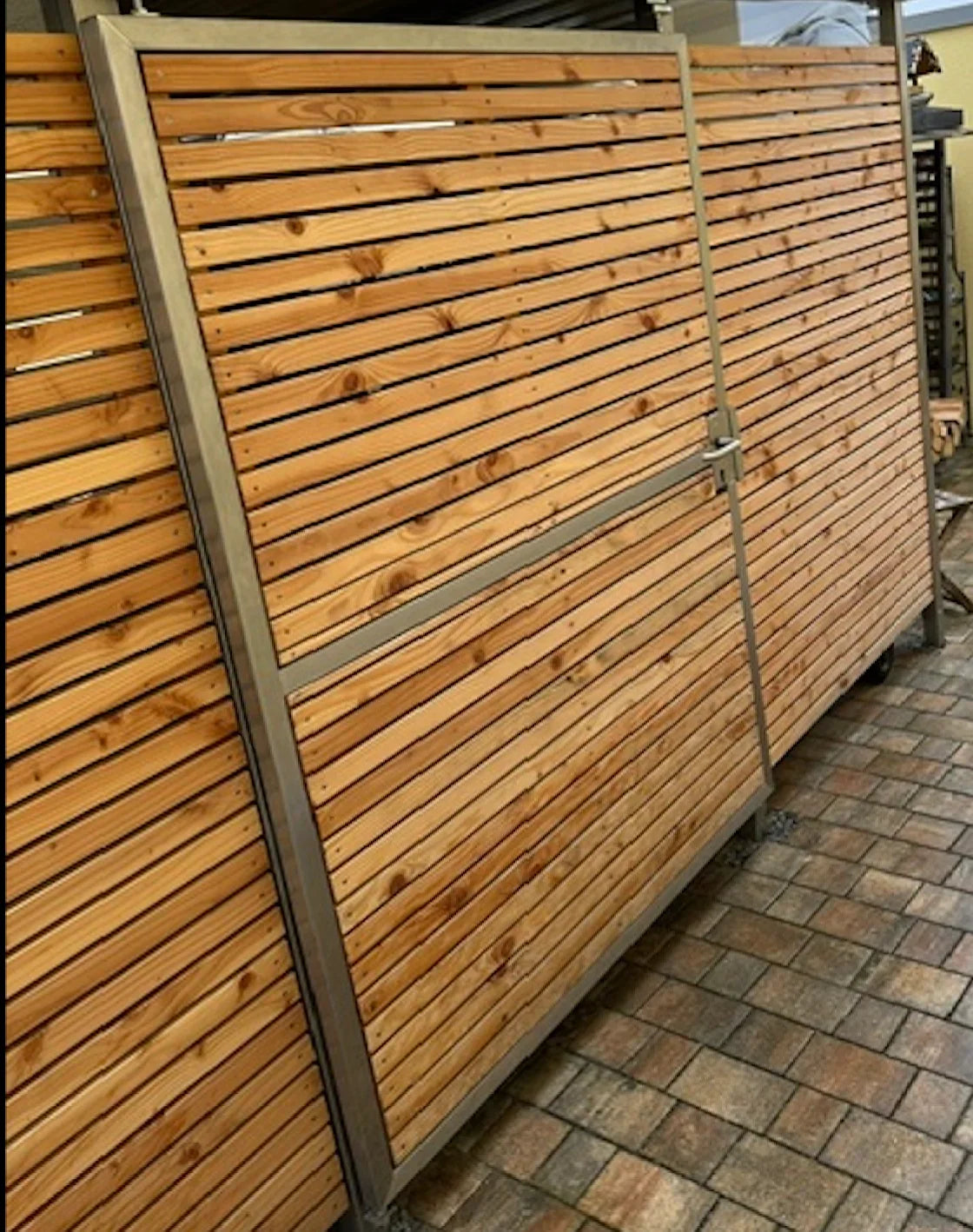

- Swing door with wooden panel (like side panels) instead of stainless steel
- Sliding door with perforated stainless steel panel
- Sliding door with wooden panel (like side panels) instead of stainless steel
Position of the door:
The position of the door can be chosen as desired.

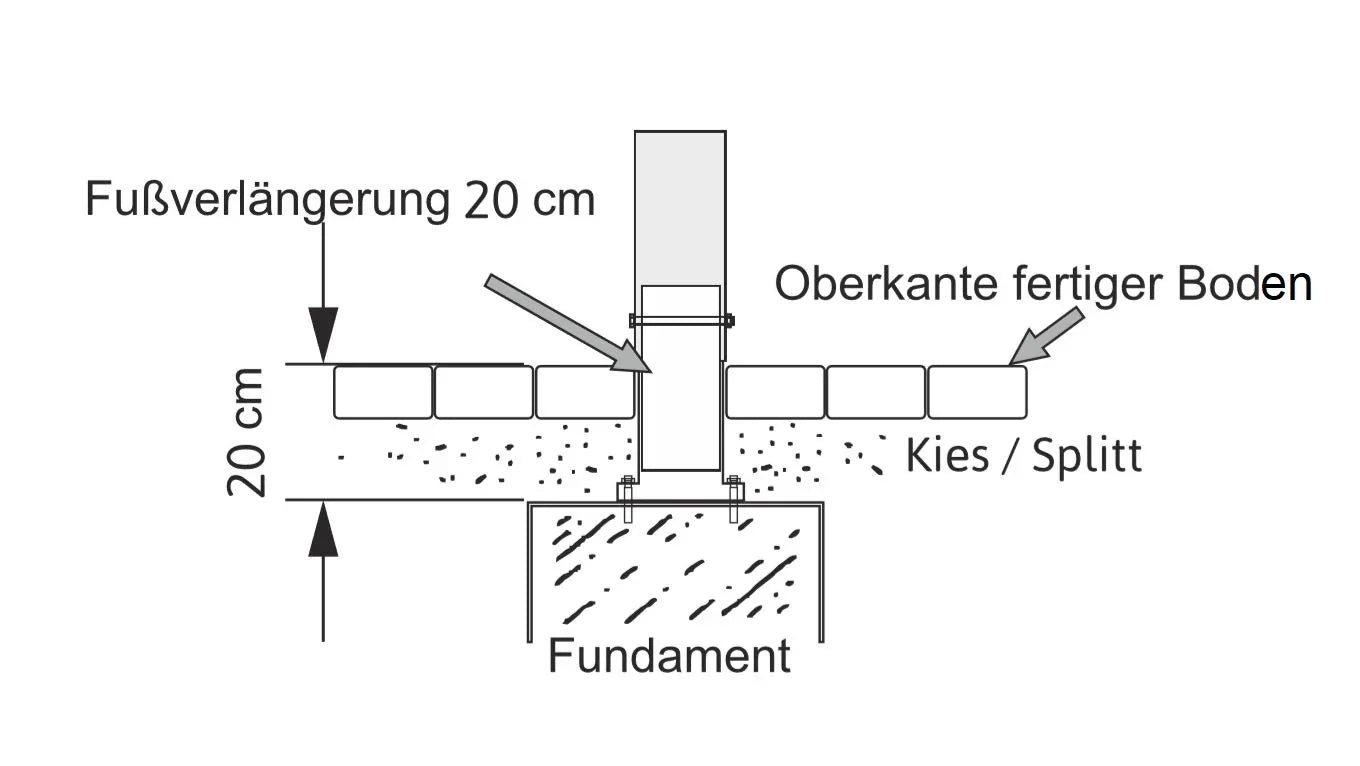

Variant floor anchoring support leg extension:
- Standard OKF +/- 0cm, without support leg extension, fastening at ground level.
- Concealed OKF - 20cm, with support leg extension. If the foundation is paved over.
Variant rain gutter:
The rain gutter is riveted to the trapezoidal sheet metal from above during installation.
Delivery incl. sheet metal rivets.
- without rain gutter
- with rain gutter open on both sides
- with rain gutter closed on one side, open on the left (view from front)
- with rain gutter closed on one side, open on the right (view from front)
- with rain gutter incl. connection piece, downpipe 200cm,
The drain/downpipe can be installed at any position on the rain gutter.
Fastened to the panelling using wall clamps.
Options and extensions on request:
The kit system can be designed very flexibly and customised products are also possible.
We would be happy to provide you with a free, no-obligation quote.
Common examples: - Back without panelling
- Front open without door
- Additional door
- Extension in length by 131cm each (standard bay width)
Information on scope of delivery, shipping and delivery: - Supplied as a kit
- Supplied without locking cylinder (a normal 25/25 cylinder lock can be used or a locking system can be integrated)
- Panelling elements are already pre-assembled. (no individual slats)
- Fastening set for floor anchoring is included in the scope of delivery.
- Delivery by forwarding agent with appointment by telephone. The exact date will be agreed approx. 1 week before delivery.
Information on foundation and assembly:
Foundation work must be carried out by the customer.
Assembly service by us is only possible regionally, within a radius of approx. 150km postcode D-92431, on request.
The assembly is relatively simple and can also be carried out by untrained personnel.

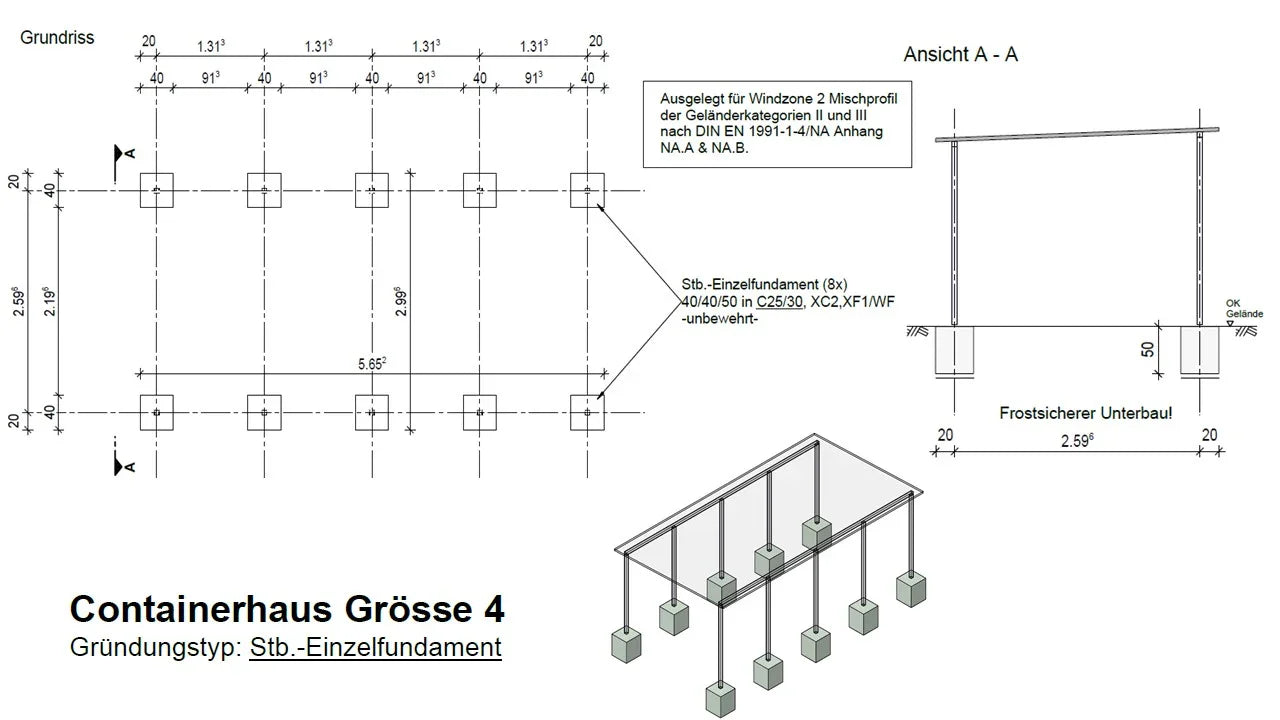

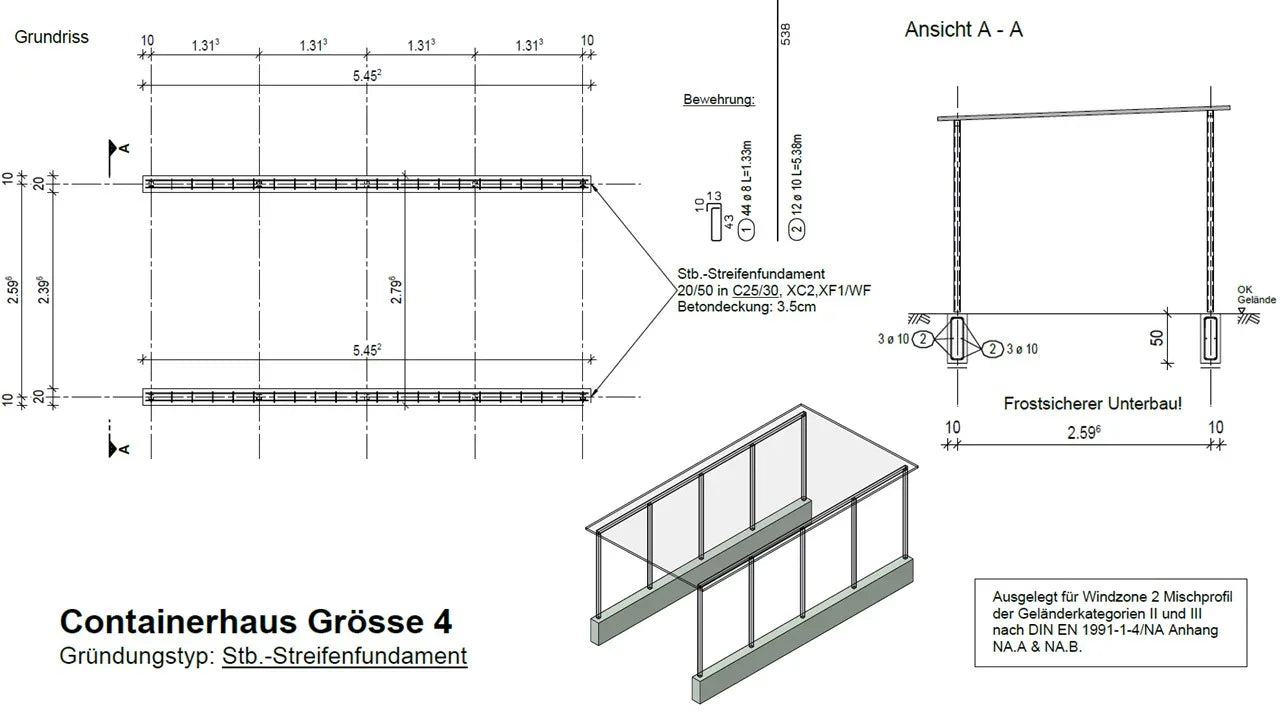

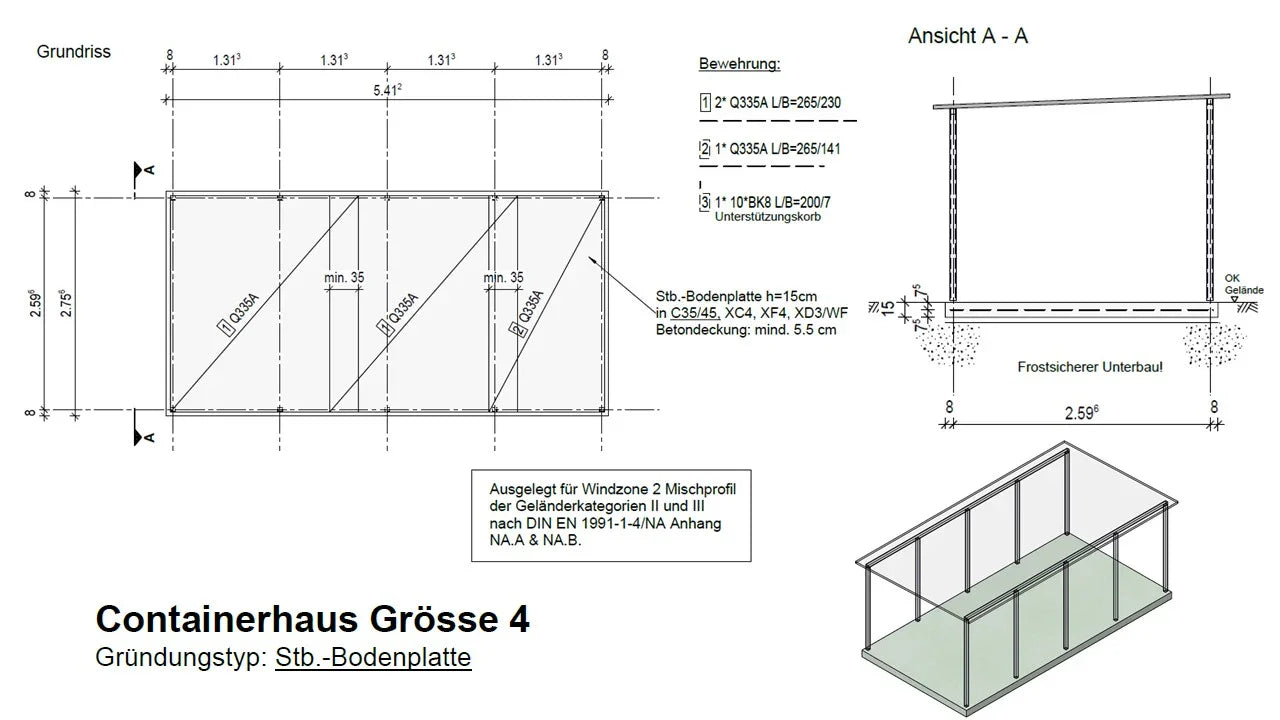

Foundation plans can be found online under the product images.
Assembly takes approx. 2 to 3 hours with 2 to 3 people according to experience.
Assembly instructions can be found here (please click)

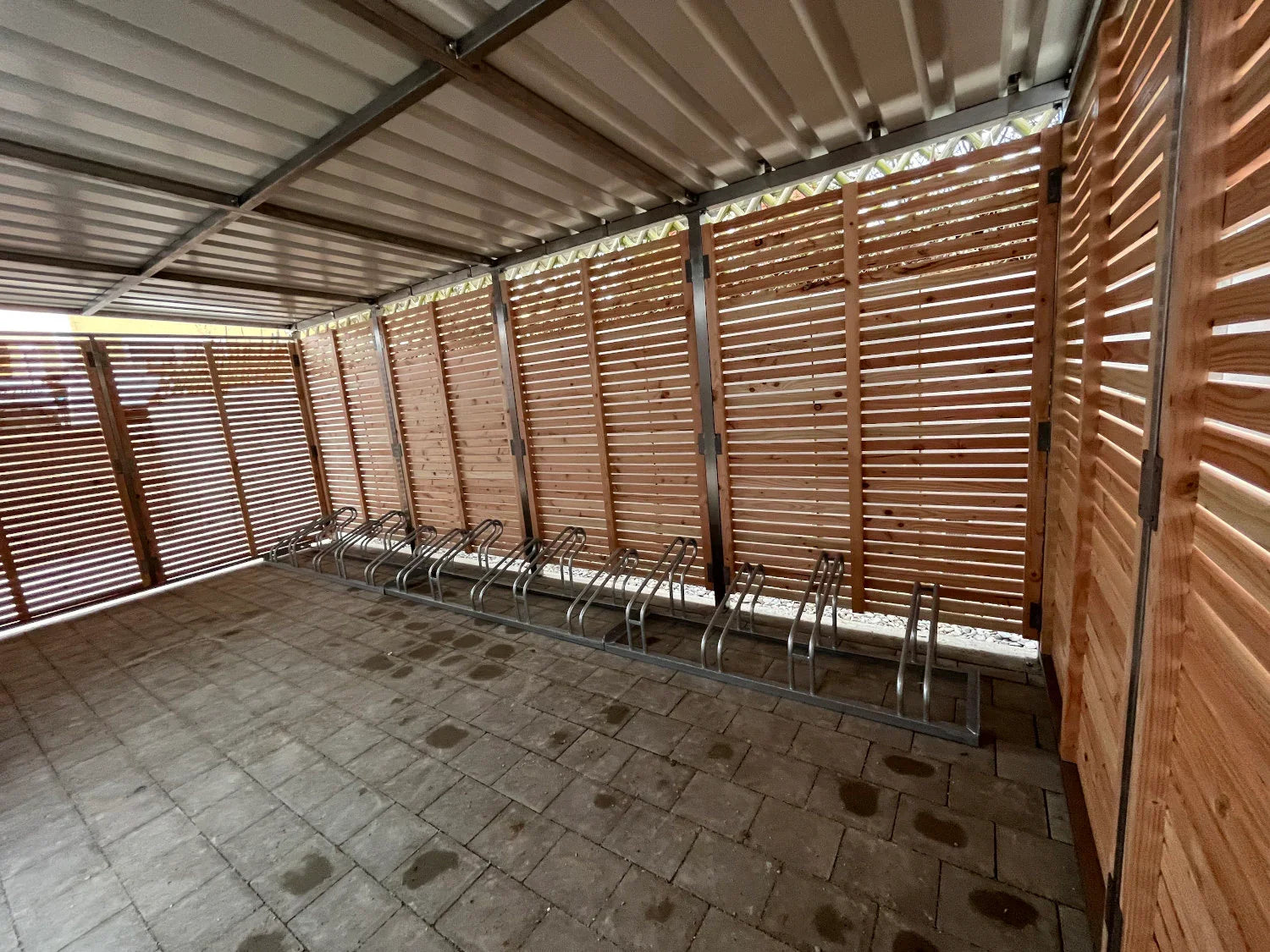

Supplement the shelter with matching bike racks:
Our bike racks and U-racks can be found here (please click) Shipping costs vary depending on EU country.
Delivery to non EU countries please ask by email.
Shipping by freight forwarding to Germany and Austria free of charge!
